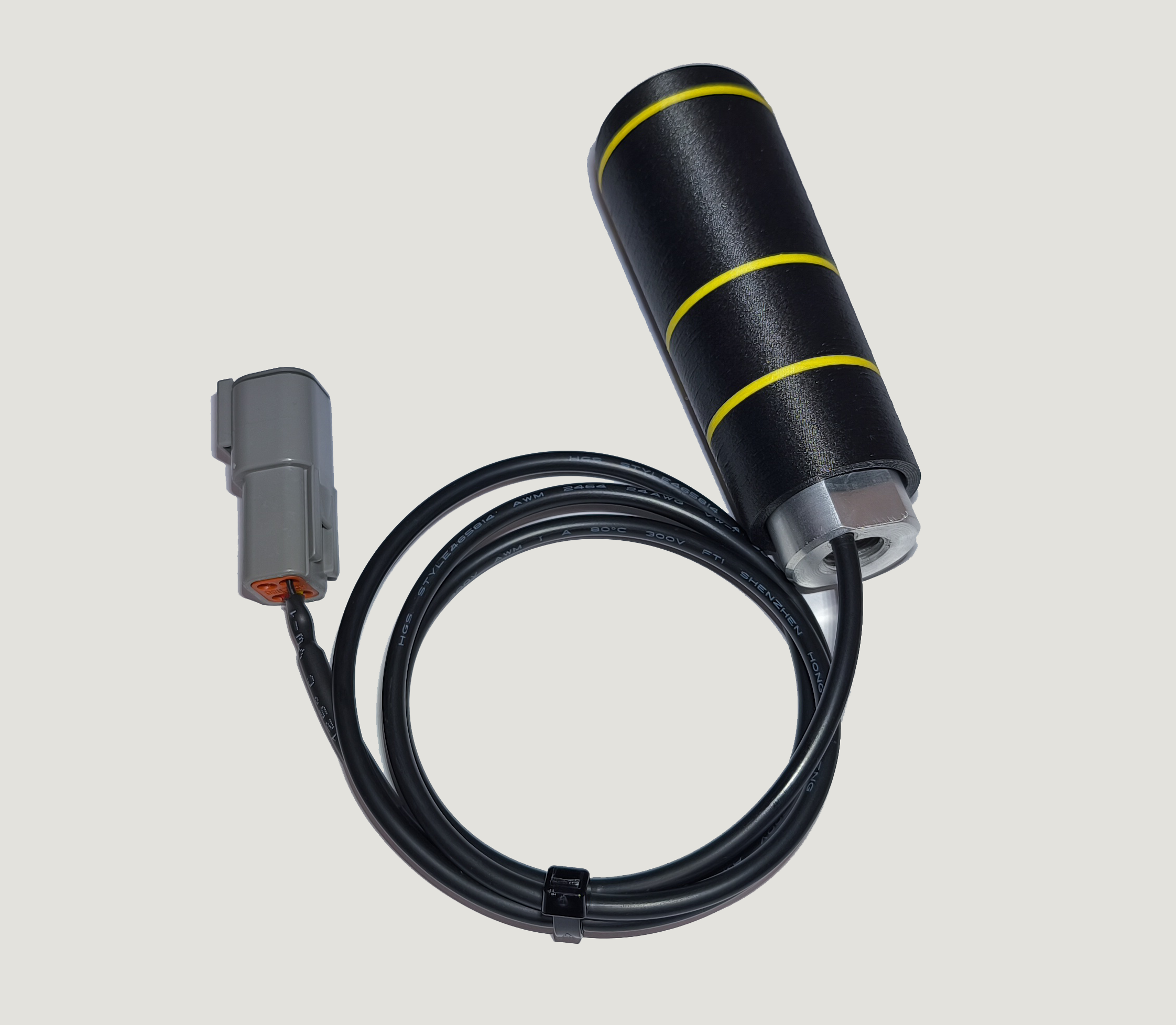

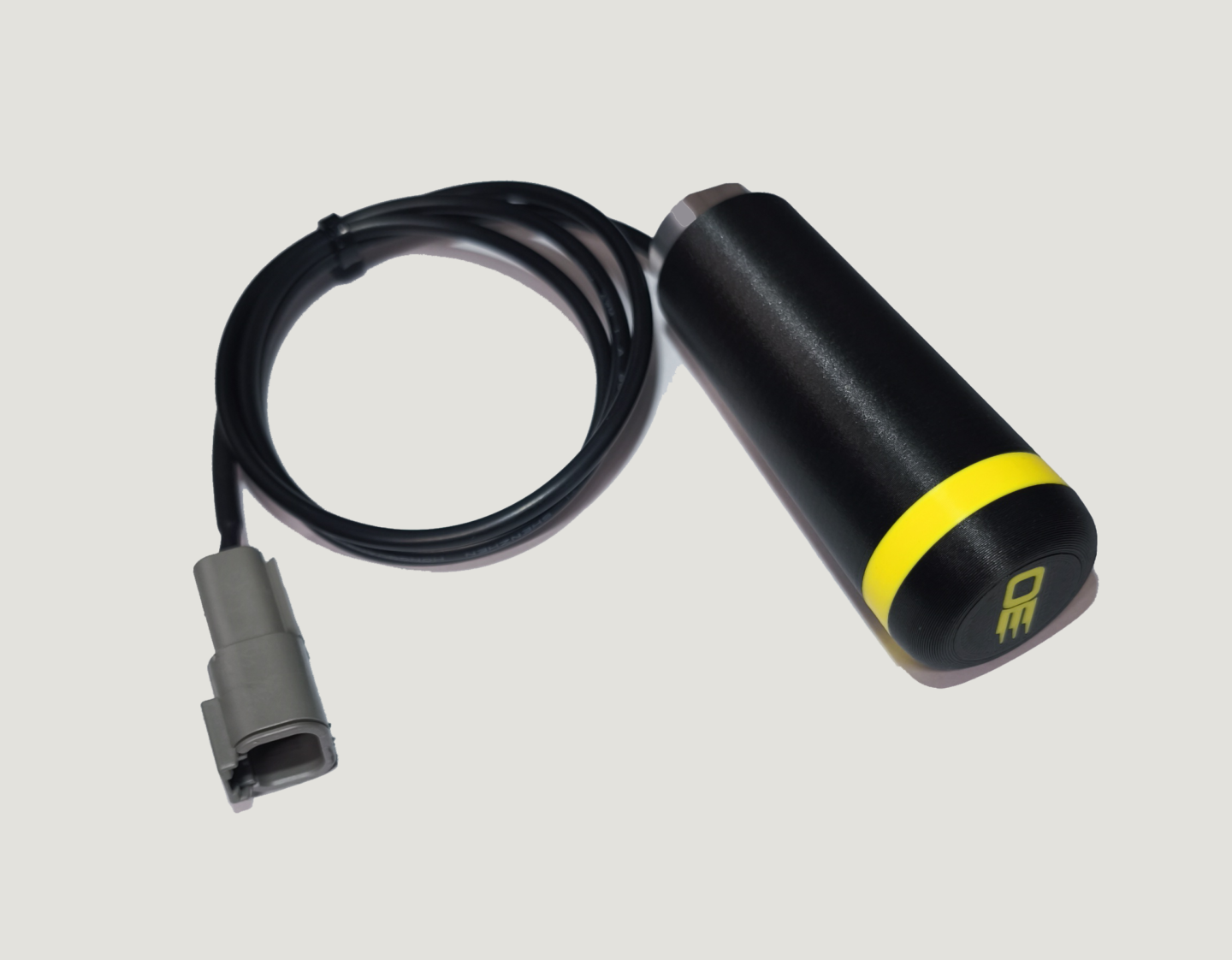

Shift Cut Gear Knob with Load cell

Technical features:

done 5.0V power supply
done 3 wire harness [+5.0V, GND, feedback]
done 2.5±0.3V steady state output
done Build-in amplifier
done 0.01V sensitivity of measure the applied force
done Temperature range -10 … +50 ºC [min. drift 0.01V/10degC]
done Up to 2.2[kgf] load determine at full scale in each direction
done Made of aluminium alloy
done Two-way action [upshift & downshift]
done Mounting hole - thread M12x1.25 or M10x1.5 with extra stop screw

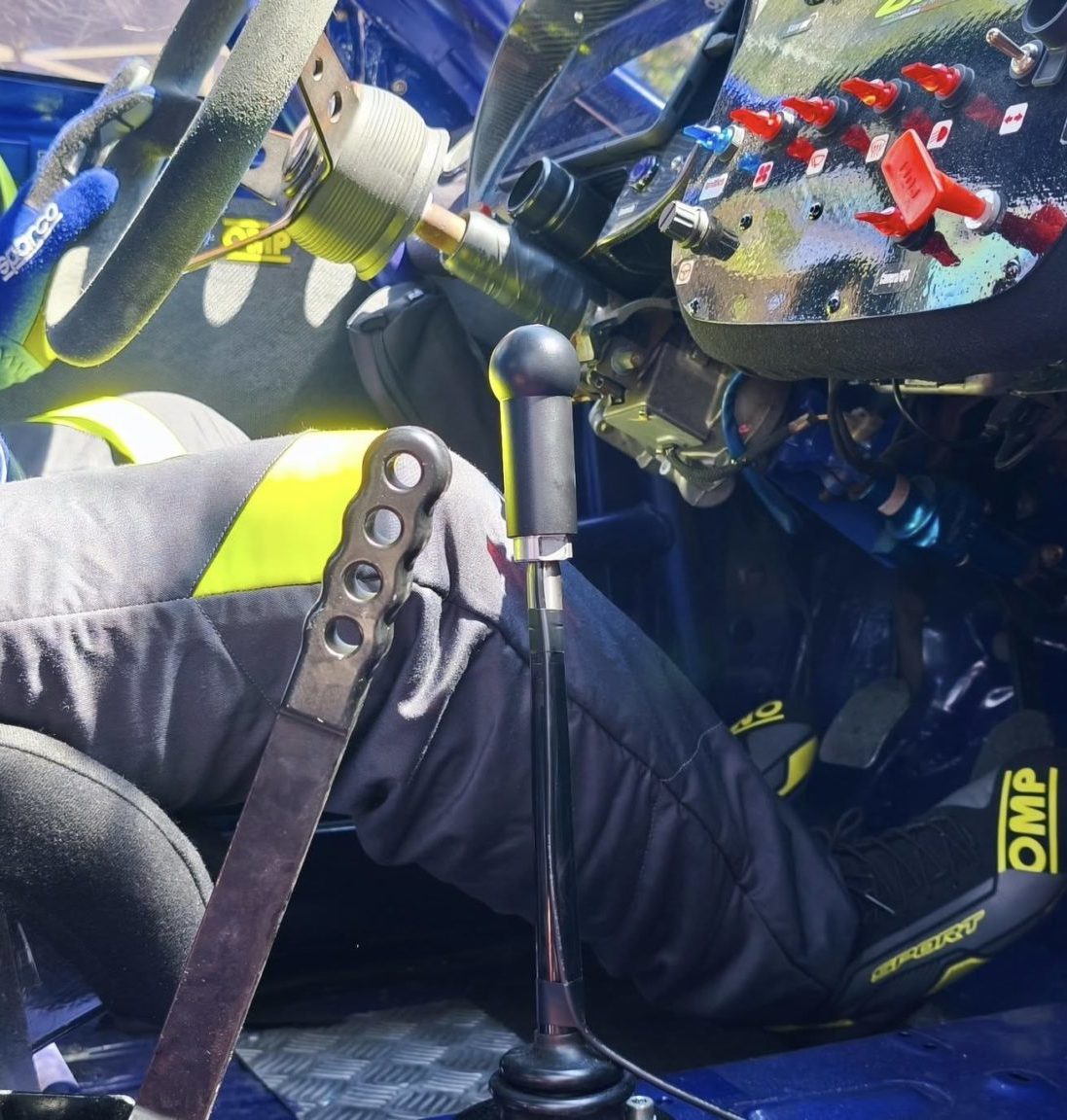

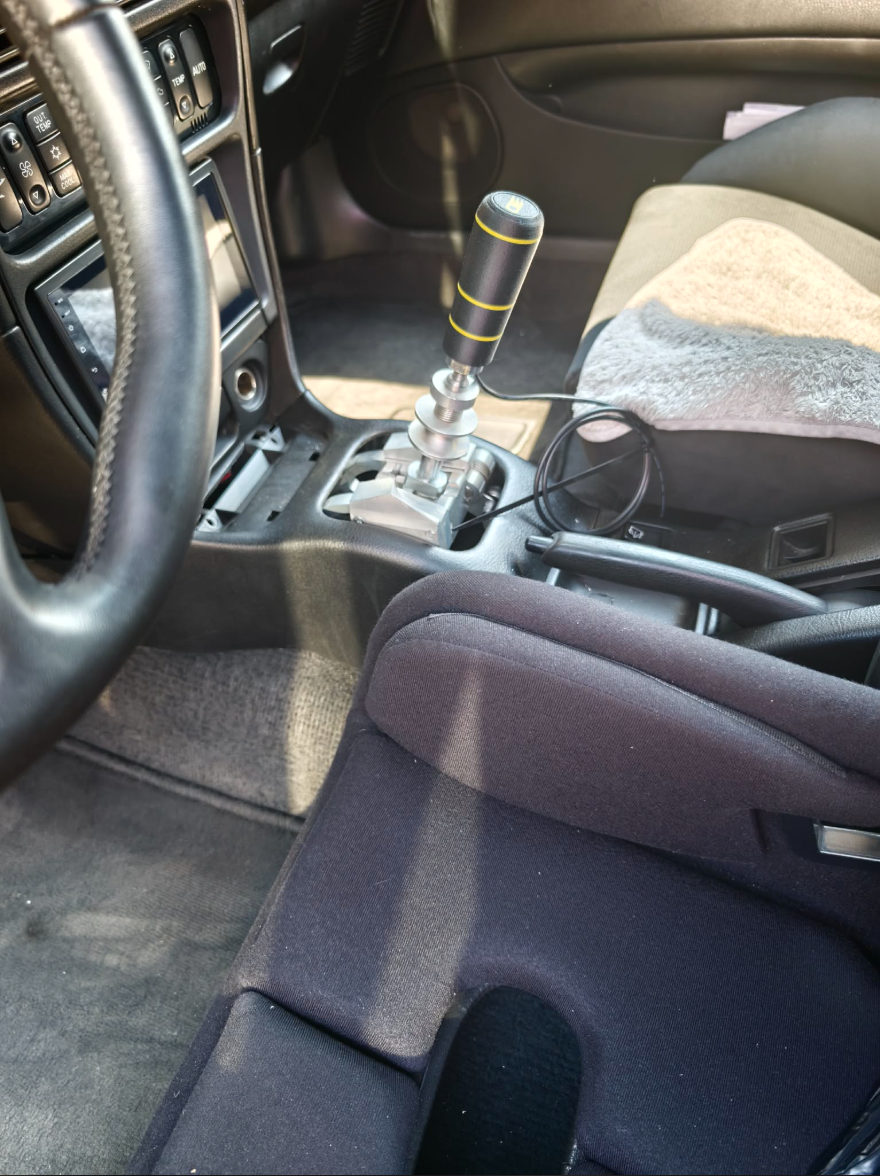

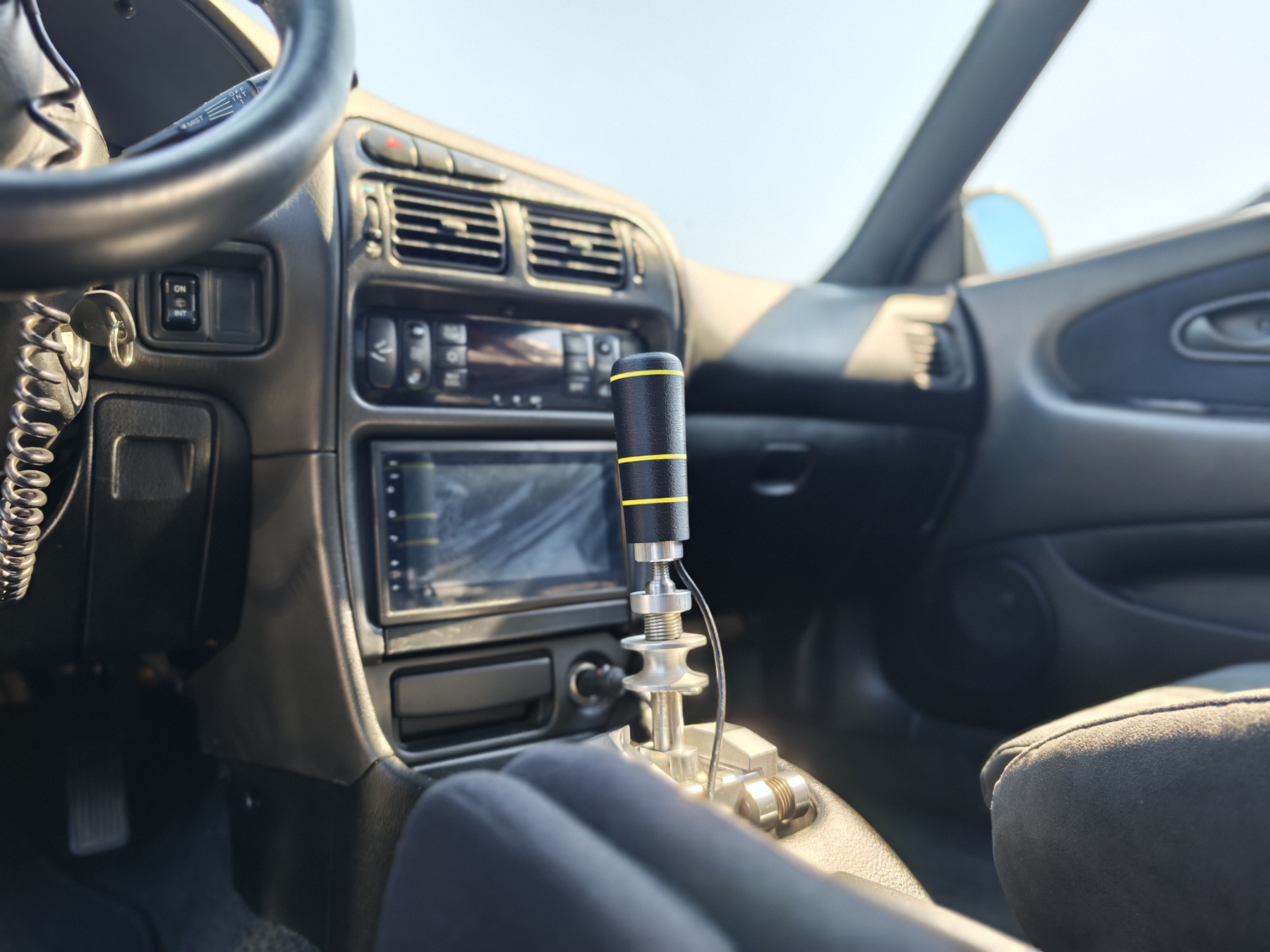

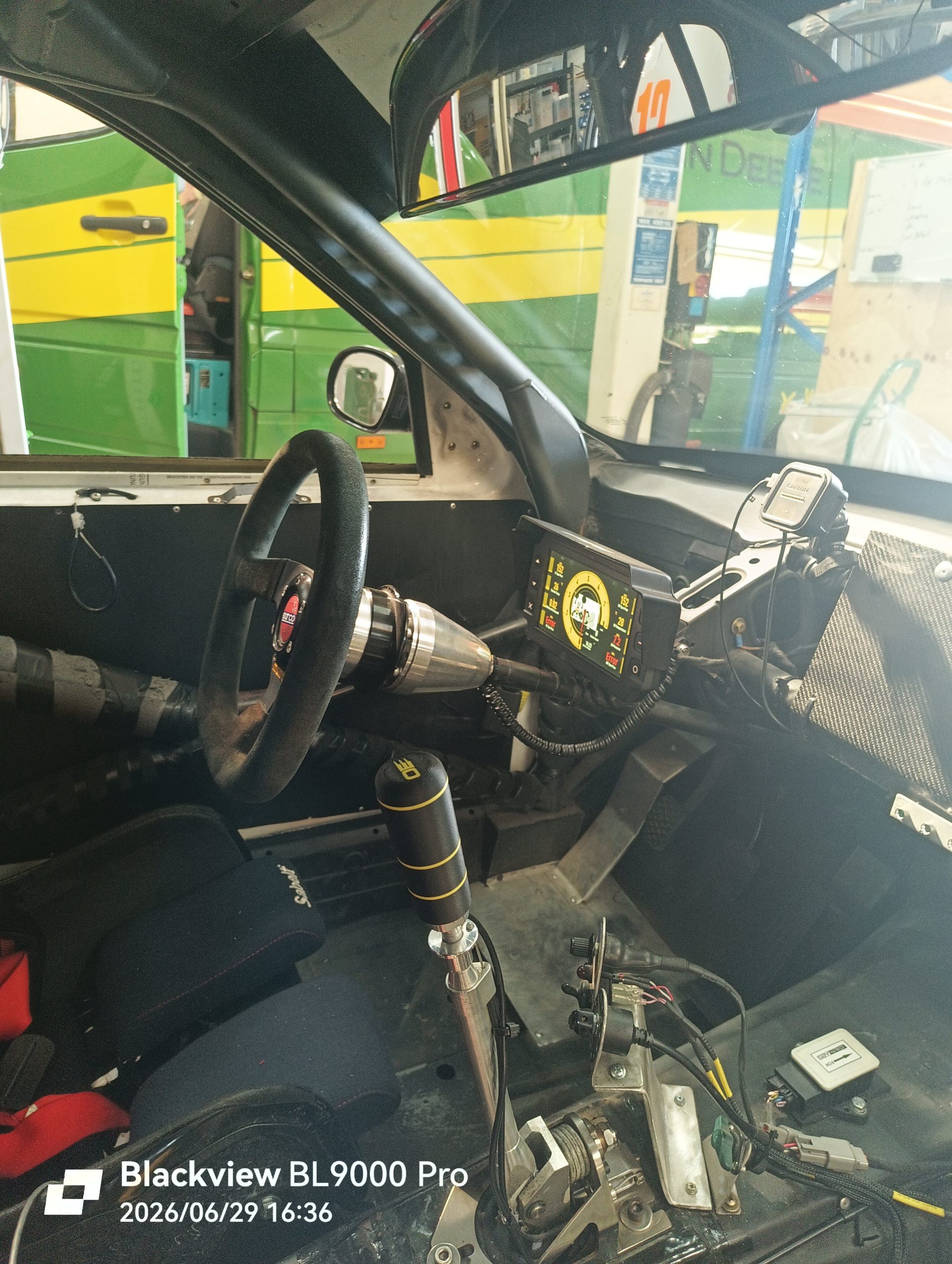

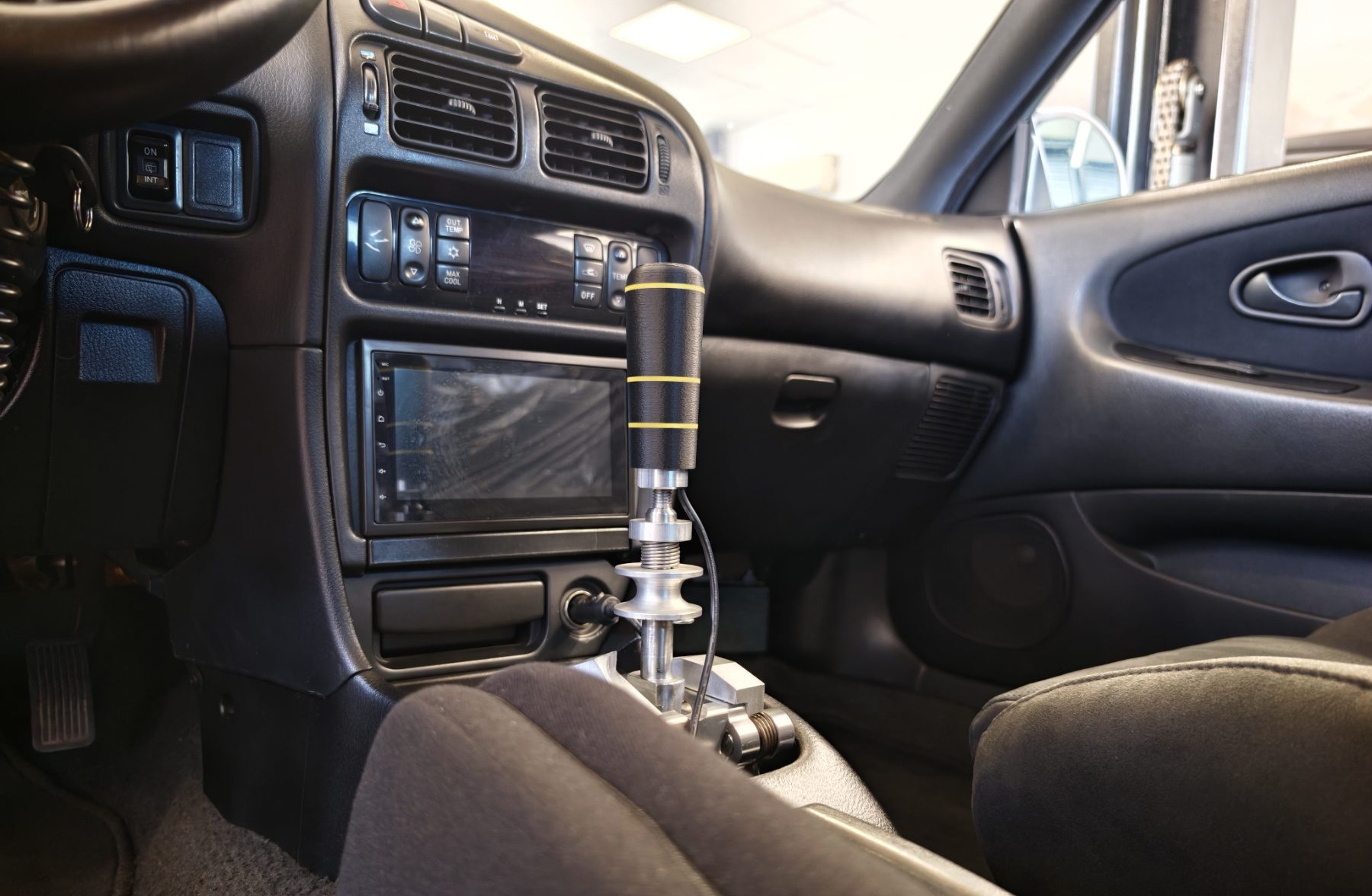

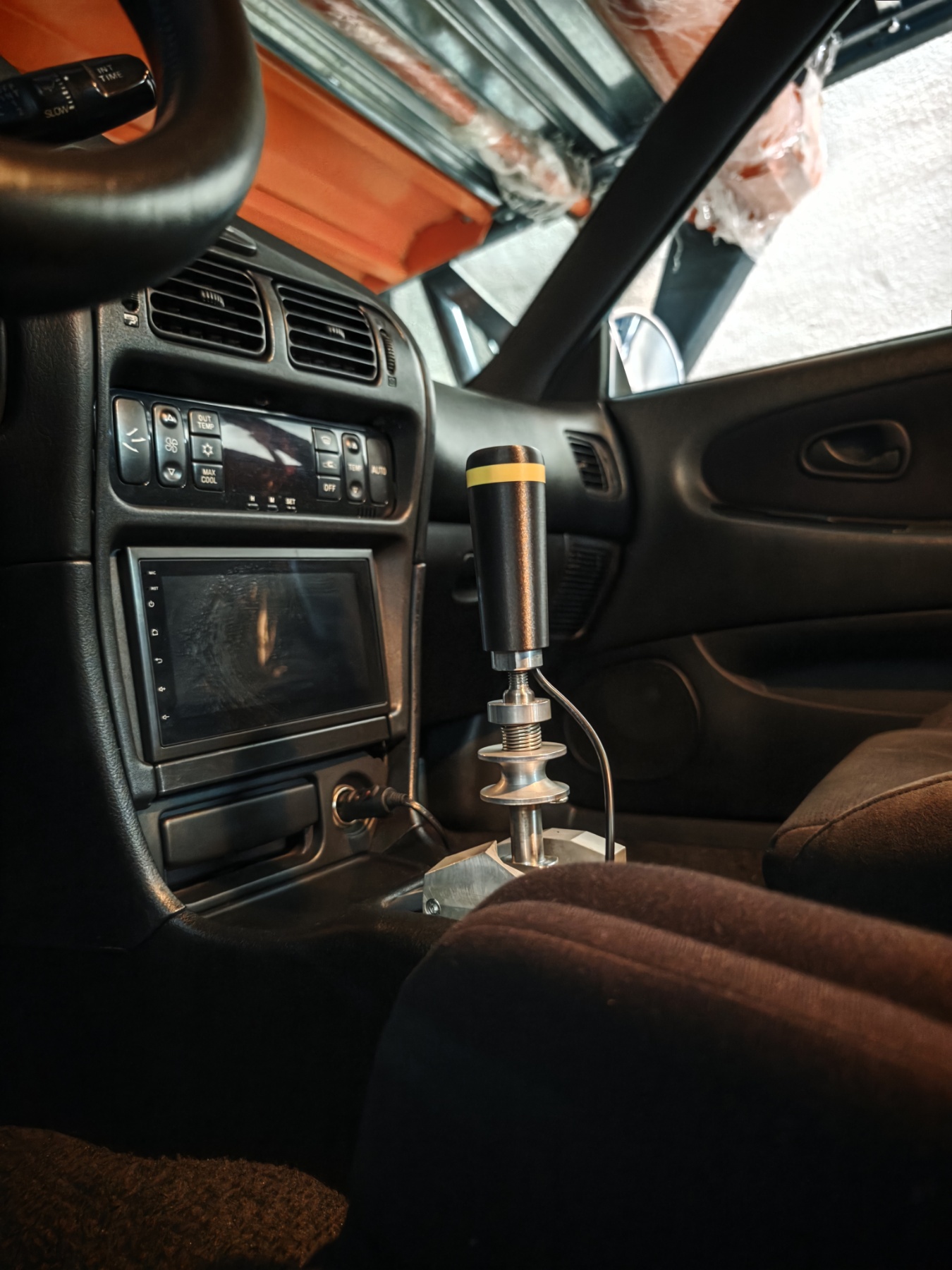

done Suitable with sequential gearbox and H-pattern dogbox for gear-cut triggering
done Natural aluminium alloy or black ceramic coated color variants
done Not compatible with in-car radio talking devices due to Radio Frequency Interference (RFI)
